PAINTED
ANODIZED
Other finishes available on request
Available lenghts and finishes:
Available codes:
Colour temperature
Board Power
Code
Color
Data sheet
MILC-1006

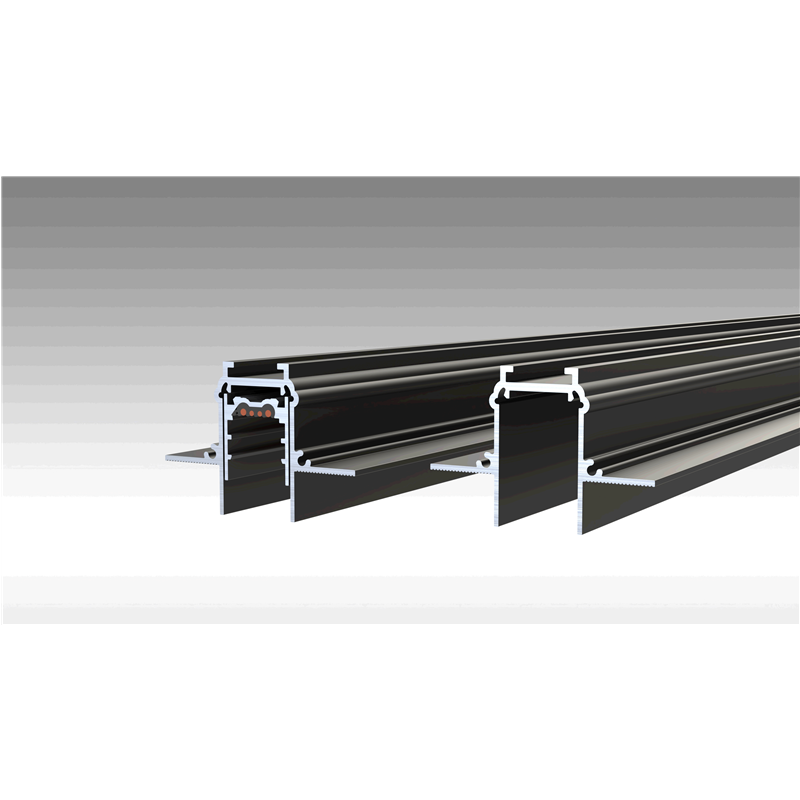

Housing profile for Electrified Tracks Single-Emission Series Milano
Useful for installation in drywall structures
Shaped profile dimensions 59.4 X h 30.8 mm
Installation
Fixing bracket stainless steel (accessories)
Structure extruded in Aluminium
[{:_:name:_:::_:MILC-1006/W300:_::-::_:profallog:_:::_:X:_::-::_:profallog_name:_:::_:Housing profiles for drywall structures:_::-::_:lunghezza:_:::_:X:_::-::_:lunghezza_name:_:::_:3.000 mm:_::-::_:verniciato:_:::_:X:_::-::_:verniciato_name:_:::_:PAINTED:_:}:-:{:_:name:_:::_:MILC-1006/W600:_::-::_:profallog:_:::_:X:_::-::_:profallog_name:_:::_:Housing profiles for drywall structures:_::-::_:lunghezza:_:::_:X:_::-::_:lunghezza_name:_:::_:6.000 mm:_::-::_:verniciato:_:::_:X:_::-::_:verniciato_name:_:::_:PAINTED:_:}:-:{:_:name:_:::_:MILC-1006/N300:_::-::_:profallog:_:::_:X:_::-::_:profallog_name:_:::_:Housing profiles for drywall structures:_::-::_:lunghezza:_:::_:X:_::-::_:lunghezza_name:_:::_:3.000 mm:_::-::_:verniciato:_:::_:X:_::-::_:verniciato_name:_:::_:ANODIZED:_::-::_:ral:_:::_:B:_::-::_:ral_name:_:::_:ANODIZED BLACK:_:}:-:{:_:name:_:::_:MILC-1006/N600:_::-::_:profallog:_:::_:X:_::-::_:profallog_name:_:::_:Housing profiles for drywall structures:_::-::_:lunghezza:_:::_:X:_::-::_:lunghezza_name:_:::_:6.000 mm:_::-::_:verniciato:_:::_:X:_::-::_:verniciato_name:_:::_:ANODIZED:_::-::_:ral:_:::_:B:_::-::_:ral_name:_:::_:ANODIZED BLACK:_:}]
Accessories (not included): track fixing brackets part number 3104 and track end plates part number 3516
Note: The housing profile is prepared for the installation of the corrugated pipe connection device part number 7400. This solution is suggested in order to protect the wiring set inside the drywall supporting structures.
